Foto
Funkcionality

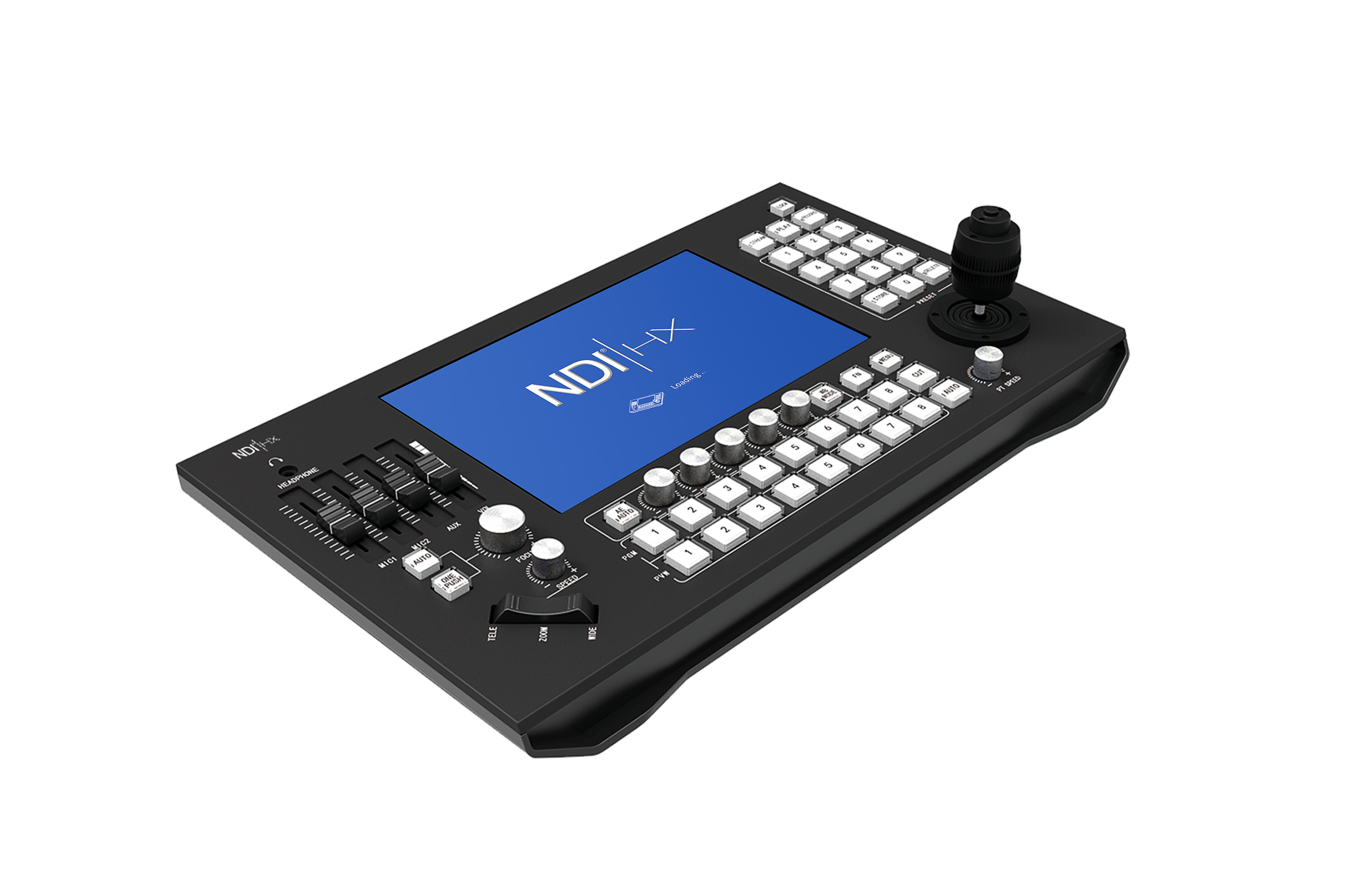

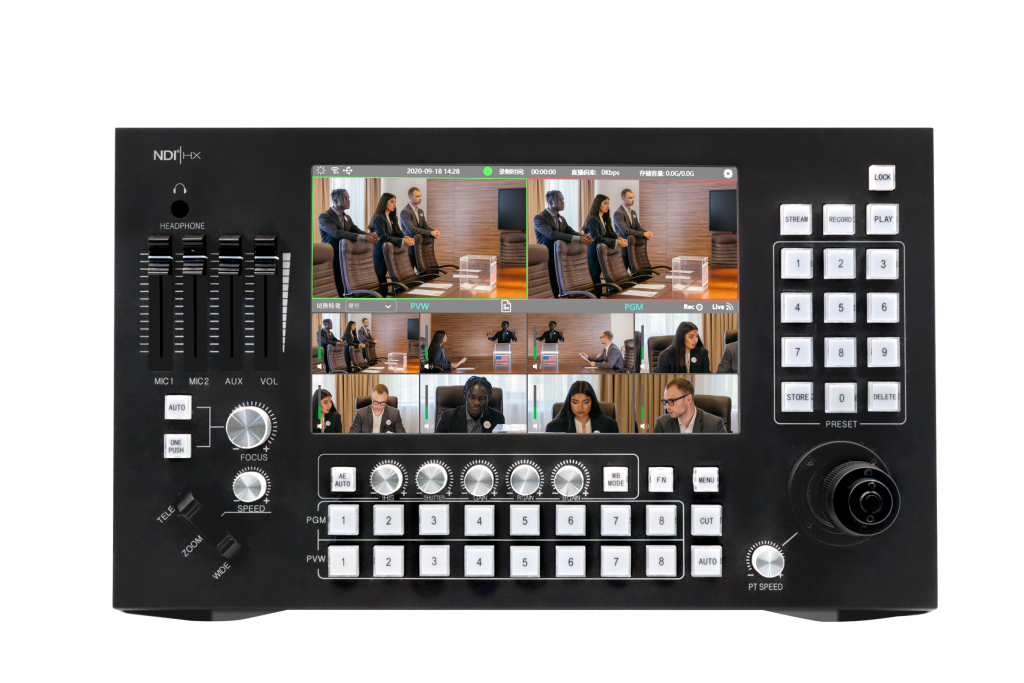

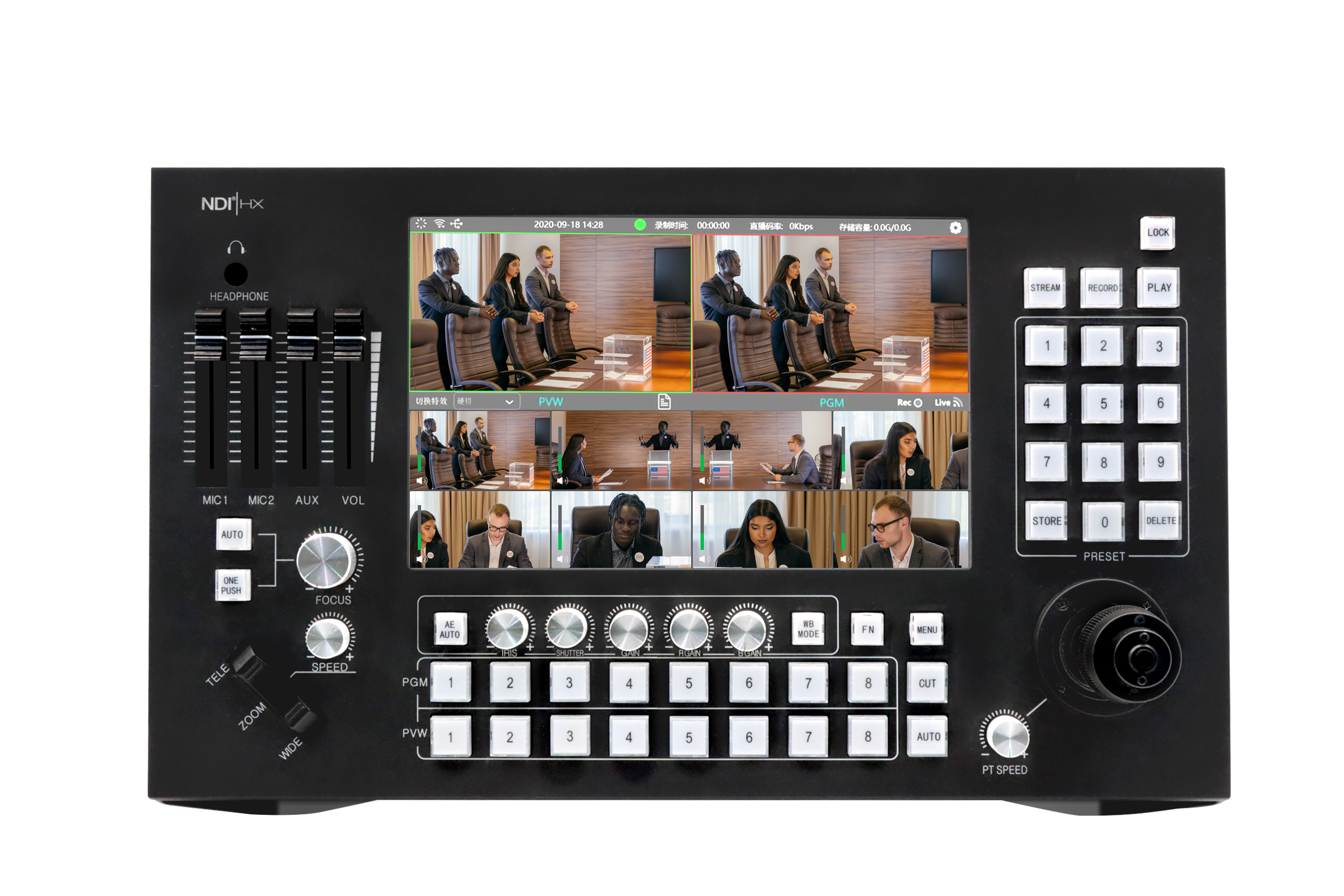

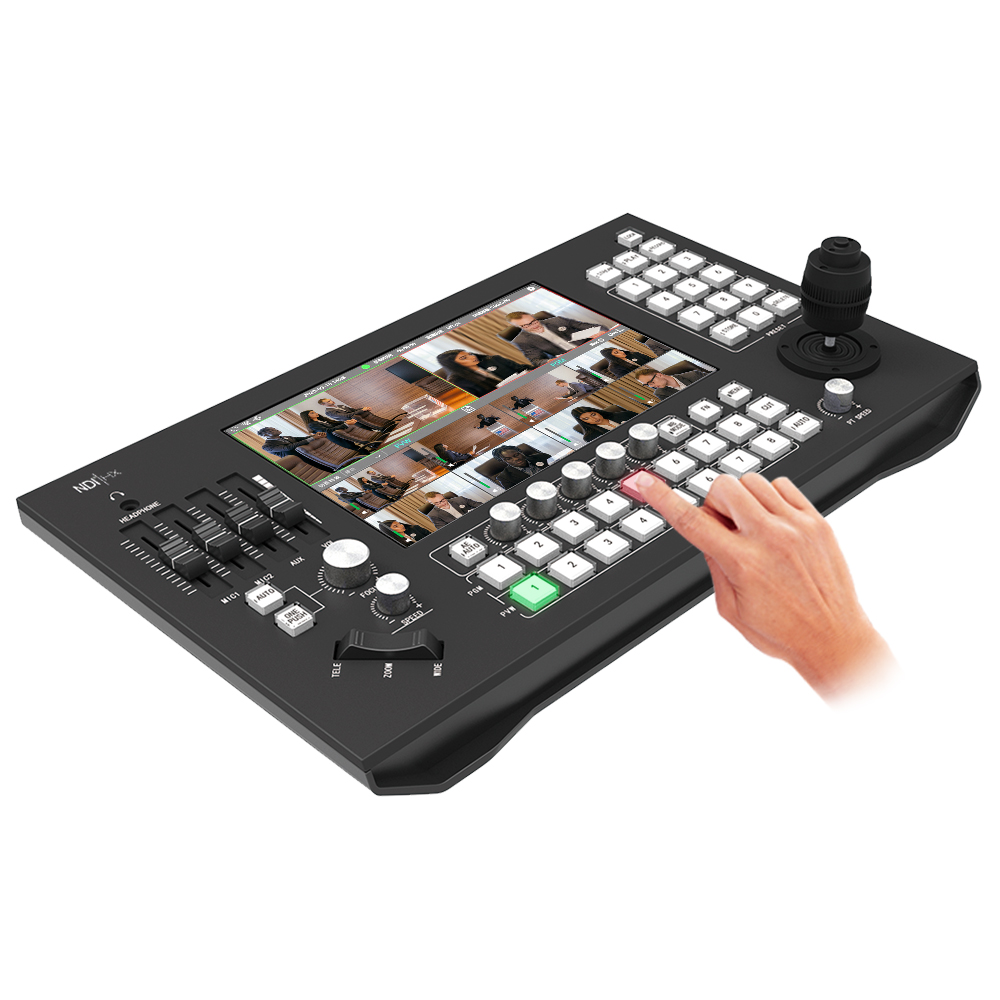

10,1” Super veľká dotyková obrazovka, integrácia režiséra a monitorovania:
Vstavaná 10,1” dotyková obrazovka, integrácia režiséra a monitorovania.
Ovládanie PTZ, vysoko integrované, komplexné riešenie:
Integruje video navádzanie, nastavenie zvuku a ovládanie PTZ v jednom zariadení s výkonnými funkciami.

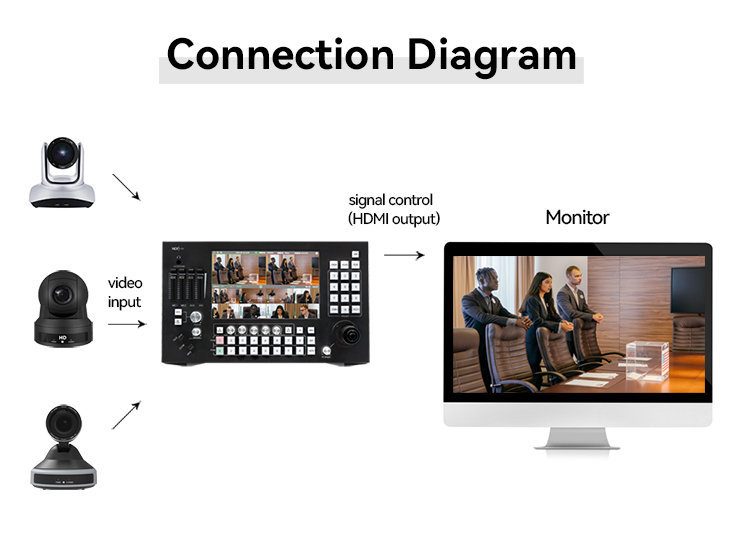

8-kanálový zdroj videa, podpora NDI|HX 2, jednoduché pripojenie, pohodlné zapojenie:
Podpora až 8 kanálov video vstupu IP (NDI|HX 2) a 1 kanál vstupného video signálu HDMI 1.4, podpora obrazového vstupu až do 1080p60.
PGM výstup:
1 kanálový výstupný video signál PGM-HDMI, podpora zobrazenia na obrazovke 1080p60.
Multi streamovacie protokoly, živé vysielanie kedykoľvek:
Podpora RTMP (2 kanály), RTSP, RTMPS, NDI HX a SRT a ďalších streamovacích mediálnych protokolov na dosiahnutie streamovania typu push and pull.
Rôzne rozloženia PIP a prechodové efekty, voľné prepínanie podľa potrieb
Podpora 8 rozložení PIP a viacerých prechodových funkcií.
Nahrávanie videa MP4
Podpora nahrávania a ukladania videa vo formáte MP4.
Podpora rozhrania pre ovládanie v čínštine a angličtine s viacerými jazykmi
Podpora rozhrania pre ovládanie v zjednodušenej čínštine, tradičnej čínštine a angličtine, viacero jazykov, jednoduché prepínanie.
Špecifikácie
Parametre
|

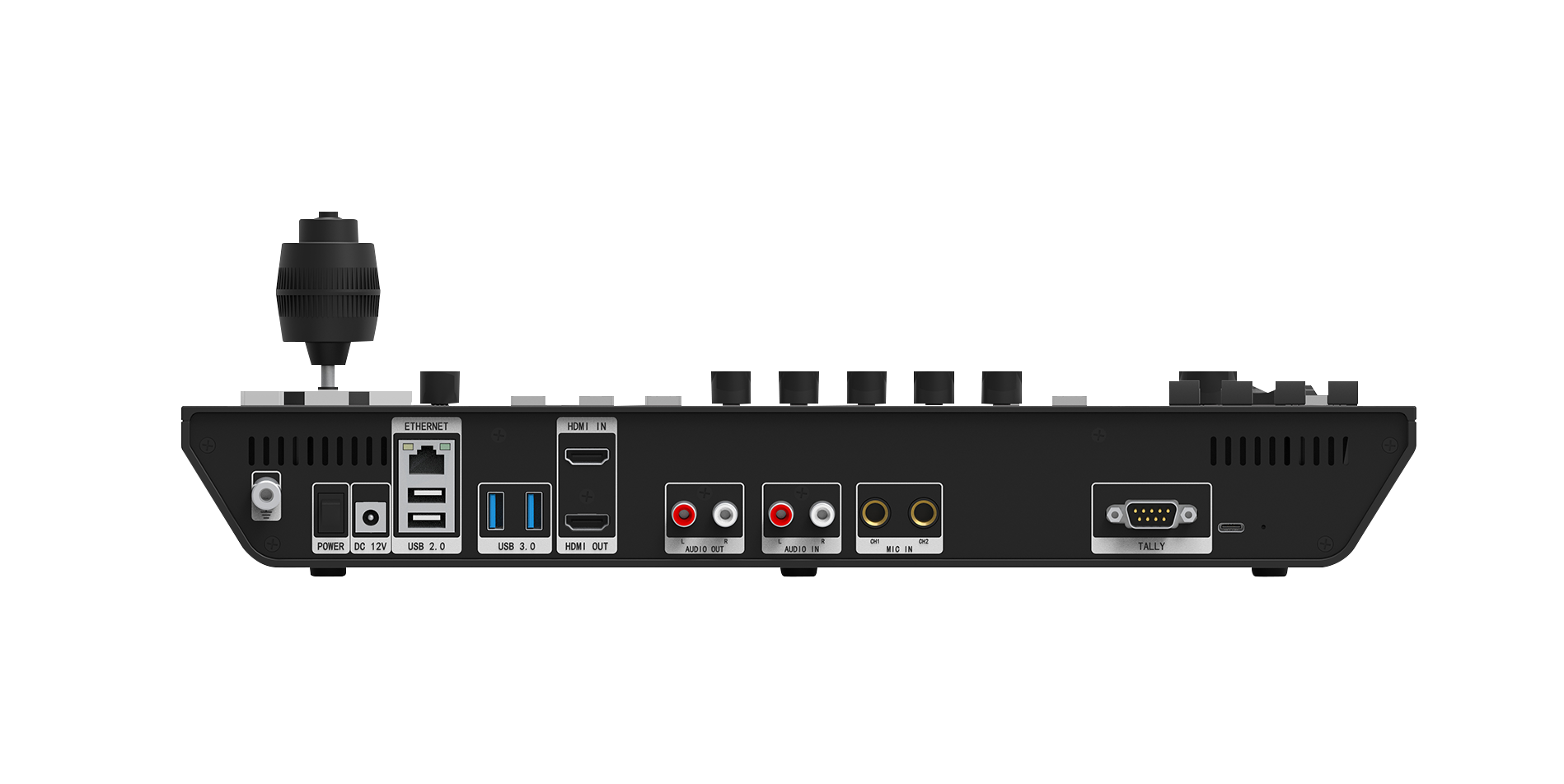

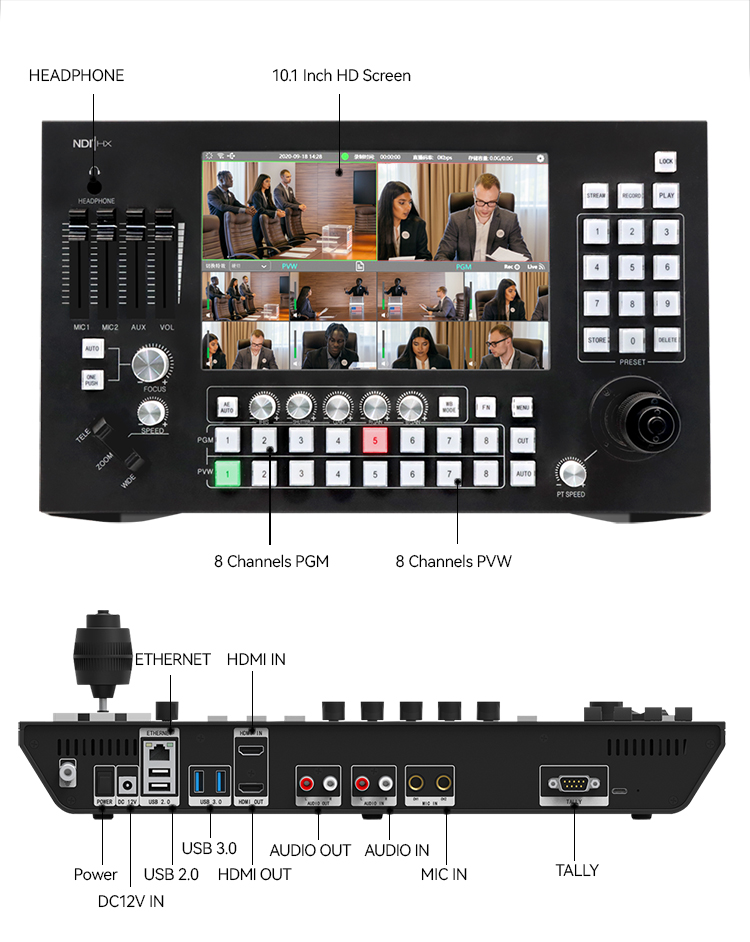

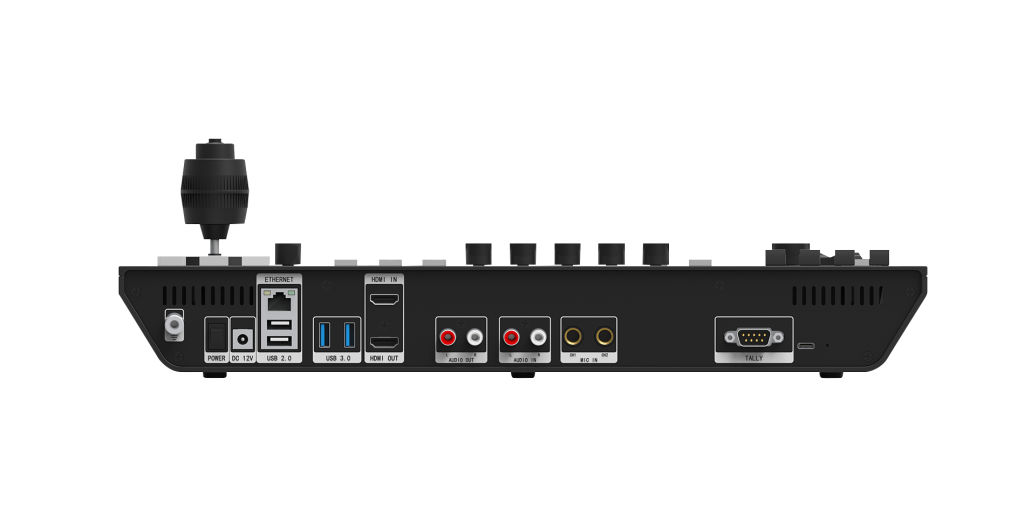

Device Interface |
|
|
Video Input Interface |
8CH NDI|HX 2, 1CH HDMI Type A 1.4 |
|
Video Output Interface |
1CH PGM-HDMI Type A 1.4 |
|
Audio Input Interface |
1 group x RCA; 1 group x6.5mm stereo mini jack |
|
Audio Output Interface |
1 group x RCA; 1x3.5mm stereo mini jack |
|
RJ45 Ethernet |
RJ45x1, Ethernet support 10, 100, 1000 BaseT, can be used for live streaming, background setting, software update |
|
Computer Interface |
2xUSB-A 3.0; 2xUSB-A 2.0; support external U disk (FAT32, NTFS, exFAT), external mouse and keyboard |
|
Format Parameter |
|
|
HD Video Input Format |
1080P25, 1080P30, 1080P50, 1080P60 |
|
HD Video Output Format |
1080P60 |
|
Video Sampling |
4:2:2 YUV |
|
Color Accuracy |
10bit |
|
Color Space |
Rec 709 |
|
HDMI Input Resolution From Computer |
1280x720p 50Hz,59.94Hz,60Hz |
|
|
1920x1080p 29.97, 30, 50, 59.94,60Hz |
|
Color Space Conversion |
Hardware real time |
|
Play Local Files |
Video file format: MP4 |
|
|
Image file format: PNG，JPG，BMP |
|
File Recording Format |
MP4 |
|
File Recording Bit Rate |
512KB, 1MB, 3MB, 5MB, 8MB, 12MB, 16MB, 20MB |
|
File Recording Resolution |
1920×1080, 1280×960, 960×540 |
|
File Playback In Real Time |
Support |
|
Product specification |
|
|
Video System |
HD |
|
Number of Function Keys |
40 |
|
Number of Adjustment Knobs |
8 |
|
Monitor Screen |
10.1” |
|
Monitor Minimum Resolution Requirements |
1920x1080 pixels |
|
LOGO |
1 set |
|
Clock Display |
Support |
|
Operating Mode |
Landscape (16:9) |
|
Subtitle |
Horizontal subtitle x1; scrolling subtitle x1 |
|
Video Keying |
Support Chroma Key green screen keying (optional) |
|
Tally |
Support |
|
Stunt Switch |
CUT & AUTO |
|
Stunt Effects |
Cut,4 special effects |
|
PIP Mode |
Support (8 PIP and POP modes) |
|
Language Model |
Simplified Chinese, Traditional Chinese, English |
|
Audio |
|
|
Mixer |
8-channel mixer with 8 inputs |
|
|
Each channel is equipped with selectable disable, follow, lock, and the channel can have independent gain control |
|
Analog Input |
Unbalanced stereo, support independent gain control |
|
Analog Input Delay |
Max 500ms |
|
Audio Input Level Range |
0dB~50dB |
|
Audio Sample Rate |
48kHz |
|
Audio Format |
AAC |
|
Audio Connection |
1 set of RCA; 1 set of TRS 6.3mm |
|
Stream media |
|
|
Streaming Output |
Up to 2 channels of streaming media addresses can be output at the same time, and streaming media can be directly broadcast live through Ethernet |
|
Streaming Output Protocol |
RTMP, RTMPS, RTSP, NDI HX |
|
Streaming Input |
Up to 8 channels of streaming media signals can be input at the same time |
|
Streaming Input Protocol |
RTSP, NDI HX, SRT |
|
Streaming Address |
Support 1 stream address preset |
|
PTZ Camera Control |
|
|
PTZ Control |
Support |
|
PTZ Control Quantity |
8 channels |
|
PTZ Camera Control Mode |
4D joystick |
|
PTZ Aperture Control |
Support |
|
PTZ Focus Control |
Support, Manual, Automatic |
|
PTZ Exposure Control |
Support, Manual, Automatic |
|
PTZ Exposure Mode |
Red gain value, blue gain value adjustment |
|
PTZ Preset Number |
9 |
|
Software Update |
|
|
Firmware Upgrade |
Direct connection to Windows, Linux computers using the Ethernet interface |
|
Power Supply |
|
|
Input voltage |
External 12V 3A power supply |
|
Input Current |
3A(Max) |
|
POE |
not support |
|
Rated Power |
36W(Max) |
|
General Specifications |
|
|
Operating Environment |
Indoor |
|
Operating Temperature |
5°-40° |
|
Storage Temperature |
-10°-60° |
|
Color |
Black |
|
Dimension |
(W)420*(D)257.5*(H)55.3mm（Without rocker height） |
|
Weight |
1.2kg |
